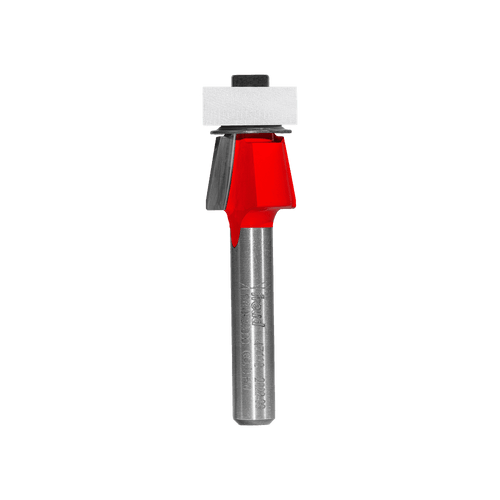

Freud Bevel Trim Bit 9/16"

Freud

$40.47
Unit price per

Options

Routing a clean, finished edge on plastic laminates

PRODUCT OVERVIEW

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.

Rout a clean, smooth edge of laminates with little of no time-consuming filing
Cuts all plastic laminates
41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
Use in hand-held or table-mounted routers and laminate trimmers

Ideal For: 8 Degree Bevel Trim on laminated materials

TECHNICAL SPECIFICATIONS

Number of Cutters	2
Max RPM	24000

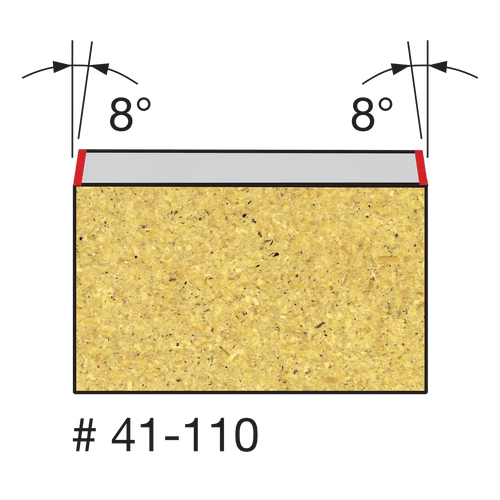

Angle (d)	8°
Bearing Dia. (B)	1/2"
Carbide Height (h)	13/32"
Overall Dia. (D)	9/16"
Overall Length (H)	2"
Shank Dia. (A)	1/4"
